Radium Engineering Fuel Rails GM LS1 / LS2 / LS3/ LS6 / L76 / L99 - 20-0232
Fitment Information
- GM LS1 / LS2 / LS3/ LS6 / L76 / L99
Specifications
The fuel rail ports are tapped for 8AN ORB.
-
8AN ORB Adapter Fittings
-
8AN ORB Direct Mount Regulators
-
8AN ORB Fuel Pulse Dampers
- Fuel Pressure Gauge Adapters
Fuel Injector Compatibility
- This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.

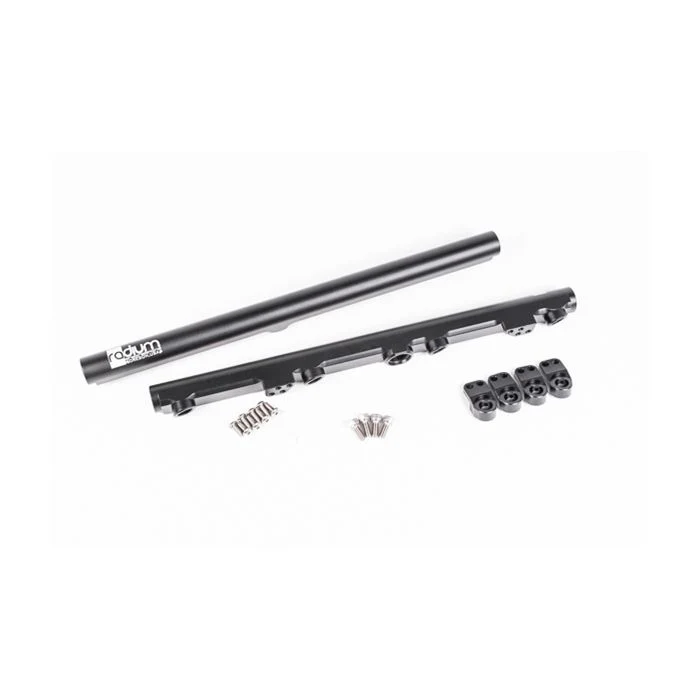

What's Included?
-
Black Anodized Laser Etched Aluminum Fuel Rails (x2)
-
Black Anodized Aluminum Mounting Feet (x4)
-
Stainless Steel Mounting Feet Hardware (x8)
- Stainless Steel Replacement Mounting Bolts (x4)
Product Description
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
Manufactured with a large 0.69" internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. All end ports are machined with 8AN ORB (3/4-16 female) threads. The lower center ports can be used for optional adapters and are also tapped with 8AN ORB (3/4-16 female) threads.
The kit features specifically designed billet mounts. These modular "feet" allow compatibility on the following GM LS engines by simply flipping them and reinstalling into different threaded holes on the rails: LS1, LS2, LS3, LS6, L76, L99
Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.
Original: $218.45
-65%$218.45
$76.46
Description
Fitment Information
- GM LS1 / LS2 / LS3/ LS6 / L76 / L99
Specifications
The fuel rail ports are tapped for 8AN ORB.
-
8AN ORB Adapter Fittings
-
8AN ORB Direct Mount Regulators
-
8AN ORB Fuel Pulse Dampers
- Fuel Pressure Gauge Adapters
Fuel Injector Compatibility
- This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.
What's Included?
-
Black Anodized Laser Etched Aluminum Fuel Rails (x2)
-
Black Anodized Aluminum Mounting Feet (x4)
-
Stainless Steel Mounting Feet Hardware (x8)
- Stainless Steel Replacement Mounting Bolts (x4)
Product Description
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
Manufactured with a large 0.69" internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. All end ports are machined with 8AN ORB (3/4-16 female) threads. The lower center ports can be used for optional adapters and are also tapped with 8AN ORB (3/4-16 female) threads.
The kit features specifically designed billet mounts. These modular "feet" allow compatibility on the following GM LS engines by simply flipping them and reinstalling into different threaded holes on the rails: LS1, LS2, LS3, LS6, L76, L99
Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.
